Konfigurasi Superlab 3 Cisco

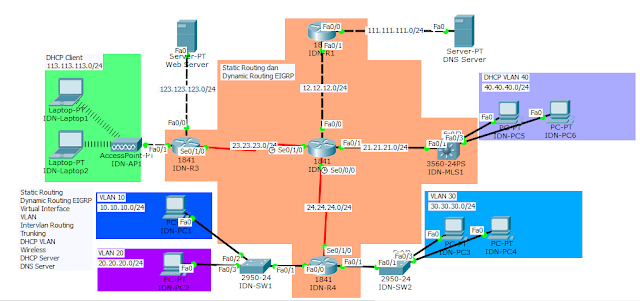

    Topologi LAB



          C.     Materi LAB 3

-          Static routing

-          Dynamic routing EIGRP

-          Virtual Interface

-          VLAN

-          Intervlan Routing

-          Trunking

-          DHCP VLAN

-          Wireless

-          DHCP Server

-          DNS Server

Konfigurasi pada IDN-R1

Pemberian IP Address

Router>enable

Router#conf terminal

Enter configuration commands, one per line. End with CNTL/Z.

Router(config)#int fa 0/0

Router(config-if)#ip address 111.111.111.1 255.255.255.0

Router(config-if)#e

Router(config-if)#no sh

Router(config)#int fa 0/1

Router(config-if)#ip address 12.12.12.1 255.255.255.0

Router(config-if)#no sh

Router(config-if)#ex

Router(config)#router eigrp 10

Router(config-router)#network 12.12.12.0

Router(config-router)#no au

Router(config-router)#no auto-summary

Router(config-router)#ex

Konfigurasi Router Static pada IDN-R1

Router#conf terminal

Enter configuration commands, one per line. End with CNTL/Z.

Router(config)#ip route 123.123.123.0 255.255.255.0 12.12.12.2

Router(config)#ip route 113.113.113.0 255.255.255.0 12.12.12.2

Router(config)#ip route 10.10.10.0 255.255.255.0 12.12.12.2

Router(config)#ip route 20.20.20.0 255.255.255.0 12.12.12.2

Router(config)#ip route 30.30.30.0 255.255.255.0 12.12.12.2

Router(config)#ip route 40.40.40.0 255.255.255.0 12.12.12.2

Konfigurasi pada IDN-R2

Pemberian IP Address

Router(config)#hostname IDN-R2

IDN-R2(config)#int fa 0/0

IDN-R2(config-if)#ip address 12.12.12.2 255.255.255.0

Router(config-if)#no sh

IDN-R2(config-if)#ex

IDN-R2(config)#int fa 0/1

IDN-R2(config-if)#ip address 21.21.21.2 255.255.255.0

Router(config-if)#no sh

IDN-R2(config-if)#ex

IDN-R2(config)#int se 0/0/0

IDN-R2(config-if)#ip address 24.24.24.2 255.255.255.0

Router(config-if)#no sh

IDN-R2(config-if)#ex

IDN-R2(config)#int se 0/1/0

Router(config-if)#no sh

IDN-R2(config-if)#ip address 23.23.23.2 255.255.255.0

Pemberian Router EIGRP

IDN-R2(config)#router eigrp 10

IDN-R2(config-router)#net

IDN-R2(config-router)#network 12.12.12.0

IDN-R2(config-router)#network 23.23.23.0

IDN-R2(config-router)#network 24.24.24.0

IDN-R2(config-router)#network 21.21.21.0

IDN-R2(config-router)#no auto-summary

IDN-R2(config-router)#ex

IDN-R2(config)#

Pemberian Router Static

IDN-R2#conf terminal

Enter configuration commands, one per line. End with CNTL/Z.

IDN-R2(config)#ip route 111.111.111.0 255.255.255.0 12.12.12.1

IDN-R2(config)#ip route 123.123.123.0 255.255.255.0 23.23.23.3

IDN-R2(config)#ip route 113.113.113.0 255.255.255.0 23.23.23.3

IDN-R2(config)#ip route 10.10.10.0 255.255.255.0 24.24.24.4

IDN-R2(config)#ip route 20.20.20.0 255.255.255.0 24.24.24.4

IDN-R2(config)#ip route 30.30.30.0 255.255.255.0 24.24.24.4

IDN-R2(config)#ip route 40.40.40.0 255.255.255.0 21.21.21.1

IDN-R2(config)#

Konfigurasi IDN-R3

Selanjutnya pada router IDN-R3 Konfigurasi ip address berikut dengan netmask /24

Router(config)#hostname IDN-R3

IDN-R3(config)#ip add

IDN-R3(config)#int fa 0/0

IDN-R3(config-if)#ip address 123.123.123.3 255.255.255.0

IDN-R3(config-if)#ex

IDN-R3(config)#int fa 0/0

IDN-R3(config-if)#no sh

IDN-R3(config-if)#ex

IDN-R3(config)#int fa 0/1

IDN-R3(config-if)#ip address 113.113.113.3 255.255.255.0

IDN-R3(config-if)#no sh

Konfigurasi DHCP Pool pada IDN-R3 Untuk Client

IDN-R3(config)#ip dhcp pool client

IDN-R3(dhcp-config)#net

IDN-R3(dhcp-config)#network 113.113.113.0 255.255.255.0

IDN-R3(dhcp-config)#default-router 113.113.113.3

IDN-R3(dhcp-config)#dns-se

IDN-R3(dhcp-config)#dns-server 111.111.111.2

IDN-R3(dhcp-config)#ex

Konfigurasi Routing EIGRP IDN-R3

IDN-R3(config)#router eigrp 10

IDN-R3(config-router)#net

IDN-R3(config-router)#network 23.23.23.0

IDN-R3(config-router)#network 23.23.23.0

IDN-R3(config-router)#no auto-summary

Konfigurasi Static Routing pada IDN-R3

IDN-R3(config)#ip route 111.111.111.0 255.255.255.0 23.23.23.2

IDN-R3(config)#ip route 10.10.10.0 255.255.255.0 23.23.23.2

IDN-R3(config)#ip route 20.20.20.0 255.255.255.0 23.23.23.2

IDN-R3(config)#ip route 30.30.30.0 255.255.255.0 23.23.23.2

IDN-R3(config)#ip route 40.40.40.0 255.255.255.0 23.23.23.2

Konfigurasi IDN-R4

Pemberian IP Address

Router(config)#int fa 0/0.10

Router(config-subif)#encapsulation dot1Q 10

Router(config-subif)#ip address 10.10.10.4 255.255.255.0

Router(config-subif)#ex

Router(config)#int fa 0/0.20

Router(config-subif)#encapsulation dot1Q 20

Router(config-subif)#ip address 20.20.20.4 255.255.255.0

Router(config-subif)#ex

Router(config)#int fa 0/1.30

Router(config-subif)#encapsulation dot1Q 30

Router(config-subif)#ip address 30.30.30.4 255.255.255.0

Router(config-subif)#ex

Router(config)#int se 0/1/0

Router(config-if)#ip address 24.24.24.4 255.255.255.0

Router(config-if)#no sh

Konfigurasi Dynamic Routing EIGRP pada IDN-R4

Router(config)#router eigrp 10

Router(config-router)#net 24.24.24.0

Router(config-router)#no auto-summary

Konfigurasi Static Routing pada IDN-R4

Router(config)#ip route 111.111.111.0 255.255.255.0 24.24.24.2

Router(config)#ip route 123.123.123.0 255.255.255.0 24.24.24.2

Router(config)#ip route 113.113.113.0 255.255.255.0 24.24.24.2

Router(config)#ip route 40.40.40.0 255.255.255.0 24.24.24.2

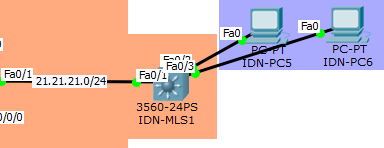

Pada IDN-MLS1 (Multilayer Switch) konfigurasi seperti berikut ini

Switch(config)#vlan 40

Switch(config-vlan)#name vlan40

Switch(config-vlan)#ex

Switch(config)#int vlan 40

Switch(config-if)#

%LINK-5-CHANGED: Interface Vlan40, changed state to up

Switch(config-if)#ip address 40.40.40.1 255.255.255.0

Switch(config-if)#ex

Switch(config)#int fa 0/1

Switch(config-if)#no sh

Switch(config-if)#no switchport

Switch(config-if)#ip address 21.21.21.1 255.255.255.0

Switch(config-if)#int ra fa 0/2-3

Switch(config-if-range)#switchport mode access

Switch(config-if-range)#switchport access vlan 40

Konfigurasi DHCP VLAN untuk client pada IDN-MLS1

Switch(config)#ip dhcp pool vlan40

Switch(dhcp-config)#net

Switch(dhcp-config)#network 40.40.40.0 255.255.255.0

Switch(dhcp-config)#def

Switch(dhcp-config)#default-router 40.40.40.1

Switch(dhcp-config)#dns

Switch(dhcp-config)#dns-server 111.111.111.2

Switch(dhcp-config)#ex

Konfigurasi dynamic routing eigrp pada idn-MLS1

Switch(config)#ip routing

Switch(config)#router eigrp 10

Switch(config-router)#network 21.21.21.0

Switch(config-router)#no auto-summary

Switch(config-router)#ex

Konfigurasi static routeing pada IDN-MLS1

Switch(config)#ip route 111.111.111.0 255.255.255.0 21.21.21.2

Switch(config)#ip route 123.123.123.0 255.255.255.0 21.21.21.2

Switch(config)#ip route 113.113.113.0 255.255.255.0 21.21.21.2

Switch(config)#ip route 10.10.10.0 255.255.255.0 21.21.21.2

Switch(config)#ip route 20.20.20.0 255.255.255.0 21.21.21.2

Switch(config)#ip route 30.30.30.0 255.255.255.0 21.21.21.2

Konfigurasi SW1

Pada IDN-SW1 akan mengkonfigurasi VLAN dan Trunking agar VLAN dapat terhubung pada perangkat lainnya.

Switch(config-vlan)#name vlan10

Switch(config-vlan)#ex

Switch(config)#vlan 20

Switch(config-vlan)#name vlan20

Switch(config-vlan)#int fa 0/2

Switch(config-if)#switchport mode access

Switch(config-if)#switchport access vlan 10

Switch(config-if)#switchport mode access

Switch(config-if)#switchport access vlan 20

Konfigurasi switch trunking pada IDN-SW1

Switch(config)#int fa 0/1

Switch(config-if)#switchport mode trunk

Switch(config-if)#ex

Pada IDN-SW2 akan mengkonfigurasi VLAN dan trunking agar VLAN dapat terhubung dengan perangkat yang lainnya.

Switch(config)#vlan 30

Switch(config-vlan)#name vlan30

Switch(config-vlan)#ex

Switch(config)#int ra fa 0/2-3

Switch(config-if-range)#switchport access vlan 30

Switch(config-if-range)#ex

Switch(config)#int fa 0/1

Switch(config-if)#switchport mode trunk

DNS Server

Beriutnya setting DNS pada server. Maksud nya pada menu service dan pilih DNS. Makukkan IP dan domain yang kan saling menterjemahkan satu sama lain.
